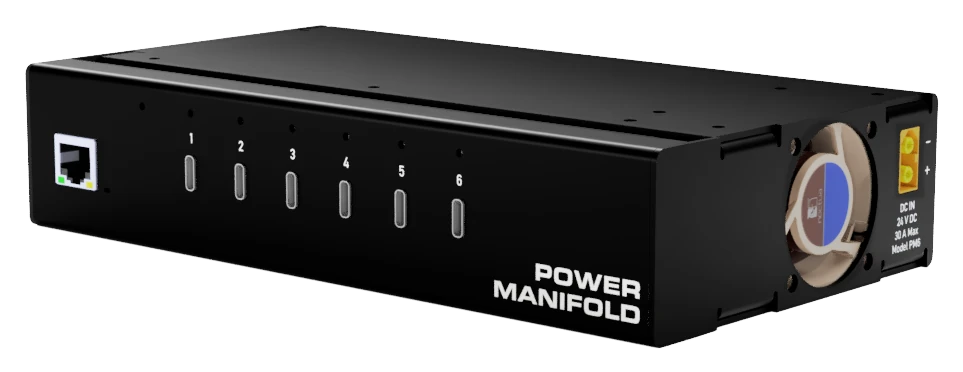

Power Manifold
Six USB-C® ports with USB PD 3.2, up to 100 W each, from one 24 V supply. Switch, name, limit and monitor every port from a browser or Home Assistant.
Set up your portsNames, on/off at power-up, voltage and power limits, auto-off when charged.
Share power between portsSet the power budget and port priorities for a supply smaller than 600 W.
Add it to Home AssistantConnect it to your MQTT broker and every port appears automatically.
Read the lightsWhat each port light and the chassis light mean, and what the button does.
TroubleshootingWhat a red light or a problem warning means, and what to do about it.
Hardware and firmwareArchitecture, building the firmware and the serial console, for developers.
What it does
Section titled “What it does”Six ports, up to 100 W each
Powers Raspberry Pis, phones, mini PCs and laptops over USB Power Delivery 3.2 at 5, 9, 12, 15 or 20 V, PPS or SPR AVS, with up to 5 A on a 5 A cable.
Shares power by priority
Set the size of your power supply and a priority for each port. When devices ask for more than the supply can give, the least important ports are turned down. Nothing is switched off.
Works with Home Assistant
Every port shows up with its power, an on/off switch and its settings, ready for dashboards, the energy panel and automations.
Status lights and live readings
A light above each port shows what it is doing, and the built-in web interface shows live power for every port.
